Product Category：ODM And OEM
Product Overview/Intended Use: This product is an intelligent charging management socket. Each socket has one input socket, one adapter socket, and four charging sockets, enabling single charging or networked charging through a local area network.
The charging port automatically monitors the current consumption of each charger, safely distributes power to each charger, and limits the total current to 20A without overloading the circuit. To ensure reliable and unmanned management of battery charging.
輸入特性/Input characteristics:
序號/NO | 項目/Item | 規格/Spec | 備注/Remark |
1 | 輸入電壓范圍/Input voltage range | 90-264V AC | 100/220V AC |
2 | 輸入電流范圍/Input current range | 0-16A | |
3 | 頻率范圍/Frequency range | 47-63 Hz | |
4 | 空載功耗/Power consumption（no load） | ＜6W | |
5 | 交流輸入插座/AC input socket | 1Pcs 0-16A | |
6 | 轉換插座/Switched | 1Pcs 0-16A |
輸出特性/output characteristic:
序號/NO | 項目/Item | 規格/Spec | 備注/Remark |
1 | 輸出電壓范圍/Output voltage range | 90-264V AC | 100/220V AC |
2 | 輸入電流范圍/Input current range | 0-16A | |
3 | 頻率范圍/Frequency range | 47-63 Hz | |
4 | 交流輸出插座/AC Output socket | 4PCS 0-16A |
環境要求/Environmental requirements
序號/NO | 項目/Item | 規格/Spec | 備注/Remark |
1 | 工作溫度/Operation temp | 0 - 40℃ | |
2 | 存儲溫度/Storage temp | -20 - 65℃ | |
3 | 工作濕度/Operation humidity | 5 - 95% | |
4 | 存儲濕度/Storage humidity | 5 - 95% | |
5 | 散熱方式/Cooling mode | 自然冷卻/natural cooling |

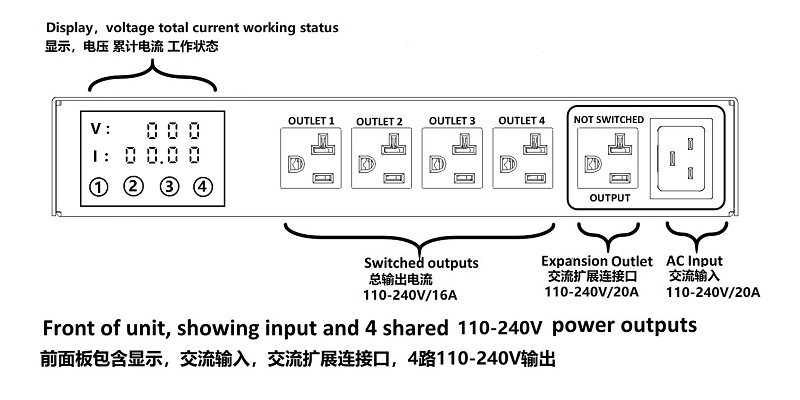

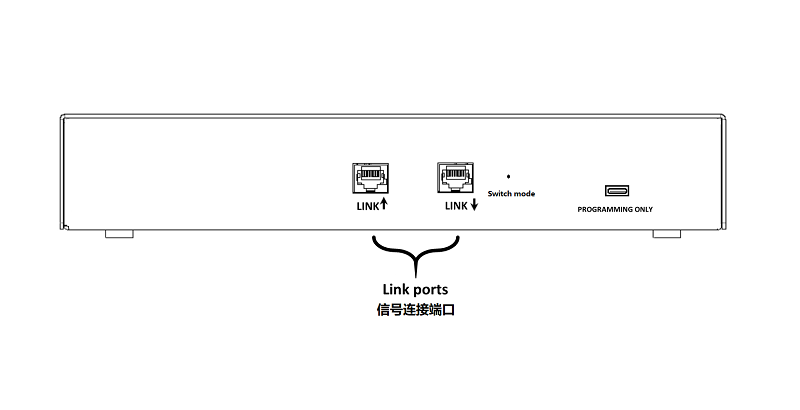

接口定義/Connector Definition
